Medium Duty Dump Truck For Dumping Muck , 30 Ton Heavy Duty Semi Trucks

Brand Name : Dump truck
Model Number : ZZ3257N3647A
Certification : ISO/CCC/SGS
Place of Origin : China
MOQ : 1 units
Price : $ 38500-42000
Payment Terms : T/T or L/C
Supply Ability : 3000 units per month
Delivery Time : 20 days
Packaging Details : Nude
Product Name : Tipper truck
Model : ZZ3257N3647A
Drive Type : LHD 6X4
Emission Standard : Euro 2
Engine : 371HP
Cargo Body(CBM) : 17.38
Loading Capacity : 30 tons
Cabin : HW76 Cab With 1 Sleeper
Application : Transportation
Contact Now

HOWO Sinotruk dump truck for dumping Muck , 30 ton dump truck


Specifications:


Howo 6x4 Dump Truck
Chassis ModelZZ3257N3647A (Right Hand Driving Type)
Production YearNew truck.
CabinHW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Engine model: WD615.69, Euro 2, 336 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L

Transmission

HW15710, 10F & 2R, with PTO

Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

SteeringZF power steering, modol ZF8098, hydraulic steering with power assitance
Front Axle

HF9, 1x9000 KGS

Steering with doubleT-cross section beam

Rear Axle

HC16, 2x16000 KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Ratio:5.73

Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange
Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres315/80R22.5, tubeless tyres with one spare tyre
Fuel Tank300L
Cargo Body5400*2300*1400 mm, 17.38 CBM, Floor 8 mm Side 6 mm.
Overall Dimension8450*2550*3500 mm

Description:

The engine drives the hydraulic pump through the transmission and power take-off device. The operating system controls the movement of the piston rod, stopping the compartment at any desired inclined position. The compartment can be tilted backwards or laterally, though the former is more common. There are also products supporting both. The compartment uses it own gravity and hydraulic control to reset.


Applications:

It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.


Competitive Advantage

1. small order can accept.

2. 1 year quality guarantee term

3 CCC,ISO9001 certifications

4. be deesigned according to your requirement.

5. More than four years dump truck manufacture experience.

6. We accept 100% inspection, and welcome to our factory at any time.



Product Tags:

heavy duty truck trailers



heavy commercial trucks


China Customized Inflatable Bumper Ball Game Bubble Adult Grass CE supplier

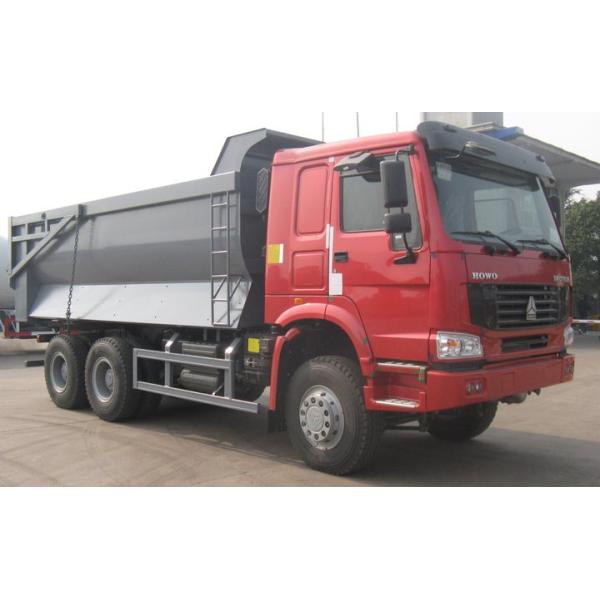

Medium Duty Dump Truck For Dumping Muck , 30 Ton Heavy Duty Semi Trucks Images
