Brand Name : SINOTRUK HOWO
Model Number : ZZ1047C3414B145
Certification : ISO/CCC/BV
Place of Origin : China
MOQ : 1set
Price : USD20000-50000/set
Payment Terms : L/C, T/T, Western Union
Supply Ability : 500sets/month
Delivery Time : 20days after receiving deposite
Packaging Details : packaging suitable for sea transport
Product Name : Refrigerator Truck
Application : Transport frozen and fresh cargo
Drive : 4x2
Refrigerating capacity : 20ton
Min. temperature(°C) : -20
Color : optional
Box material : FRP+PU Foam+FRP
SINOTRUK howo refrigerated box truck 4x2 for milk transport with quality warranty
Specifications:
REFIRGERATED TRUCK-ZZ1047C3414B145 | |||
HOWO /4x2 series /3360 wheelbase/ | |||
4x2,REFIRGERATED TRUCK, HOWO70 cabin(Single sleeping bed,A/C), with CY4100-ZLQ engine, with HW13710CL transmission,ZF8098 steering, Details for the specification List | |||
SPECIFICATION | |||
Carriage dimension: (mm) | 5540x2300x2550 | ||
Dimension(Lx W xH) | 8377x2496x3048 | ||
Approaching angle/Departure angle(°) | 19/23 | ||
Overhang(front/rear) (mm) | 1500/1870 | ||
Wheel base (mm) | 3360 | ||
Max speed(km/h) | 75 | ||
Curb weight(kg) | 19850 | ||
Engine | Model | CY4100-ZLQ | |
Fuel type | Diesel | ||
Power, max(kw/rpm) | 70KW | ||
Emission | EURO IV | ||
Fuel tanker capacity (L) | 300 | ||
Transmission | Model | HW13710CL,10 forward&2 reverse | |
Brake system | Service brake | Dual circuit compressed air brake | |
Parking brake | spring energy, compressed air operating on rear wheels | ||
Steering system | Model | ZF8098 hydraulic steering with power assistance | |
Front axle | HF7 | ||
Rear axle | MCY13Q | ||
Tyre | 12.00R20 | ||
Electrical system | Battery | 2X12V/165Ah | |
Alternator | 28V-1500kw | ||
Starter | 7.5Kw/24V |
Description:
HOWO70 cab(no bed,A/C),all-steel forward control,55º hydraulically tillable to the front,2-arm windscreen
wiper system with three speeds, laminated windscreen with casted in radio aerial, hydraulically damped
adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer
sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering
wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
Applications:
Refrigerator truck is closed van truck, which is used to transport frozen or fresh goods, it fitted with the
refrigeration unit device and polyurethane thermal insulation van and it is refrigeration special use
transport truck, usually use for transporting frozen foods (freezer truck), dairy (milk truck), vegetables
and fruits (fresh goods transport vehicle), vaccine and drug (vaccine vehicles) etc…
Competitive Advantage:
1. One year quality assurance for three key parts: axles, engine, transmission.
2. Other spare parts could be supplied by OEM at coast prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
5. All trucks and trailers are new and be customized to meet all your requirement.
6. All trucks and trailers are with 12 months quality guarantee.
7. BOTH CKD and SKD are available.
8. Technical supports are provided

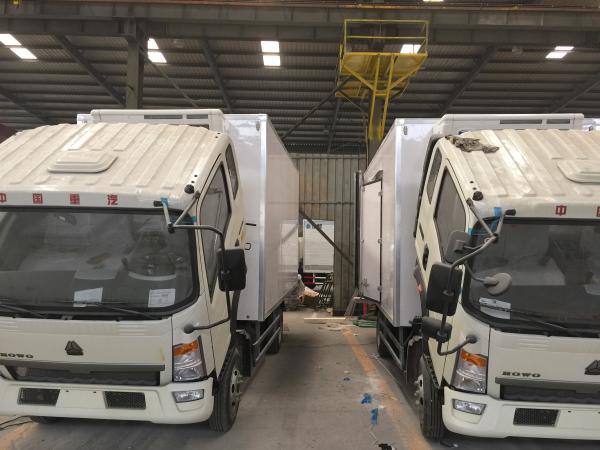

20 Ton Refrigerator Box Truck 4x2 For Milk Transport Temperature -20 ℃ Images |
